What's in the Box - HR01-2 Edition

Complete contents guide for the HR-EDC-4U-HR01-2

⏱️ Read Time: 3 minutes

Package Overview​

The HiveRadar EDC HR01-2 Edition consists of three main components: the main case unit and two protective lids.

Main Case Components​

alt text

NOTE: NUC PRO edition is show. The location and nature of the items as per diagrams is the same between editions

The main case includes all integrated systems: network switch, smart PDU, IoT monitoring device, and the compute drawer designed for two HiveRadar HR-01 Edge Servers.​

Lid Assemblies​

The EDC includes two protective lids that can attach to either end of the case. Each lid contains a different set of deployment legs designed for specific purposes.

Lid 1 - EDC Support Legs​

alt text

Includes two long, heavy-duty support legs for stabilizing the EDC during operation, plus mounting bracket for optional LED beacon.

Lid 2 - Bench Support Legs​

alt text

Includes two short, reinforced bench legs that convert the lid into a bench seat (220 lb capacity).

⚠️ Important: While both lids can attach to either end of the case, the leg sets contained in each lid are NOT interchangeable. EDC support legs and bench legs are designed for different purposes and cannot be swapped between lids.

Storage Drawers​

The HR01-2 Edition includes two storage drawers for accessories and optional equipment.

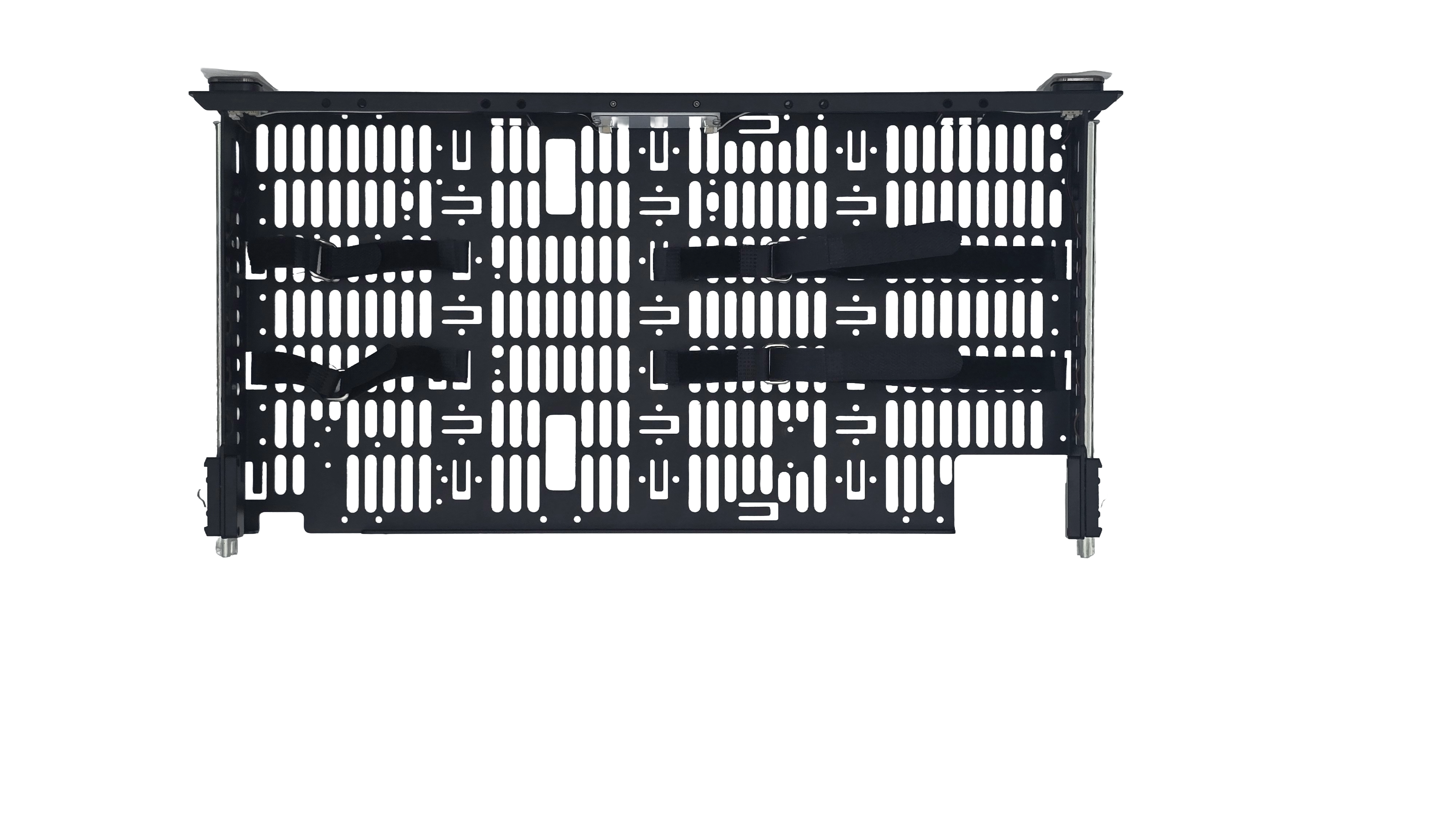

Full-Depth Drawer (Upper)​

alt text

Provides space for the accessory kit, T-bar mounting bracket, carbon fiber pole, Gateway storage.

Short-Depth Drawer (Lower)​

alt text

Includes mounting space for optional accessories. Drawer configuration may vary based on your order.

Accessory Kit​

Located in the upper storage drawer:

  • 1× Power cable (region-specific: ECP106 specific for North America, ECP106-INT specific for International)
  • 2× Ethernet cables (Cat6 or higher)
  • Welcome letter with quick start guide and product registration
  • Additional velcro cable straps
  • Spare mounting hardware (varies by configuration)

Note: Accessory contents may vary based on your order configuration and reseller.

Optional Components​

If you ordered additional accessories, these may be included separately:

  • 5G/LTE cellular gateway
  • Starlink Mini mounting hardware
  • LED beacon assembly
  • Off-grid power accessories
  • Additional storage or mounting hardware

Missing or Damaged Items?​

If any components are missing or damaged:

  1. Document with photographs
  2. Note the serial number from the rear panel label
  3. Contact your reseller immediately before deployment
  4. Retain all packaging until resolved

What's Next?​

👉 Getting Started – Product overview, edition identification, and safety information 👉 Unboxing – Safe unpacking procedures
